indicators & software


F I-521 LED
Load Cell Indicator

Features

  • 3 cell memory
  • 80 Hz peak capture rate
  • IP65
  • 2 RS-232 serial ports
  • RS-485
  • 5 point curve linearization
  • Built-in real time and date clock
  • Units of measure:
  • kgf, lbf, Newton
  • 2 set point outputs
  • 7-pin load cell quick
  • disconnect (equipped)
  • 4 remote keypad inputs
  • Analog output

Specifications

Power Supply: Input 100 - 240 VAC, 50 - 60Hz internal
mounted power supply with output of 12VDC at 2 amps

Display: 7 digits, 7-segment, 0.7” (17 mm) ultra-bright LEDs
with 14 annunciators. Max display range -999,999 to 999,999.
Display update rate 10Hz.

Keypad: 6 push buttons; select, cell, print, unit, zero, on/off

Environment
  • Working Temperature: -10° C to 40° C (14° F to 104° F)
  • Storage Temperature: -20° C to 70° C (-4° F to 158° F)
  • Humidity: 10 to 90% RH without condensation
  • Protection: IP65
Load Cell Drive Capacities
  • Excitation Voltage: 5VDC
  • Capacity: Drives up to eight 350-ohm load cells
  • Signal Connection: 4 or 6 lead load cells
  • Load Cell Input Range: -15mV to +15mV
  • Max Load Cell Output: 3mV/V
Communication
  • Serial Port 1: Full-duplex RS-232
  • Serial Port 2: Full-duplex RS-232 or half-duplex RS485
  • Baud Rate: Selectable 1200-2400-4800-9600-19200/38400-57600 bps
  • Data Output Format: 8N1, 7O1, 7E1
  • Serial Output: Select up to 14 additional data parameters
  • RS-485: 0-5VDC
  • Analog Output: 0 to 2.5VDC (≤ 2.5mA)
  • Remote Input: Select,cell, print, unit, zero, off
  • Setpoint 1 & 2: 5 to 24VDC (.5A max) external, 5 to 8VDC (≤ .1A) internal
Analog Circuit Characters
  • 24-bit A/D converter
  • A/D Conversion Speed: Peak Force 80Hz; Live Force 10Hz
  • A/D Conversion: 1mV input will output 100,000 raw counts.
  • Hardware: low pass fi lter and two programmable digital low pass fi lters
  • Max Display Range: -999,999 to 999,999
  • Division Number Range: 100,000 divisions
Real Clock: Built-in nonvolatile real time & date

Other Main Functions
  • Programmable Zero Range
  • Programmable automatic zero point tracking
  • Programmable motion detection window
  • Programmable auto-power off time
  • Adjustable LED brightness
  • Units of Measure: kgf, lbf, Newton
  • Confi gurable serial output content
  • Two set point output with two data comparison points
Product Codes
  • AWT05-506170 - US Version
  • AWT05-506171 - EU Version
  • AWT05-506172 - UK Version
Options

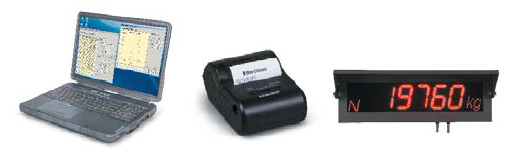

  • PCs, printers, remote displays

PCs, printers, remote displays

FI-521 Force Indicator

The FI-521 is a bi-directional load cell instrument accepting both positive and negative load cell signals, internally performing the analog to digital conversion at 80 times per second. The FI-521 Indicator features a IP65 stainless steel enclosure for reliable performance in wet or dusty environments. Included swivel mounting bracket allows for wall or bench mounting. Watertight connections include the AC power cable, 7-pin load cell quick disconnect cable with connector and three additional cable ports. The instrument's 6 key front panel enables all setup, configuration and calibration procedures.
FI-521's calibration procedures include a multi-point calibration feature for correcting the performance of non-linear load cells. The indicator has memory to store calibration information for up to three load cells.

The FI-521 can store peak and first peak values at 80 Hz. Operators can track stored data using date/time information and a 6-digit ID number. The stored data can then be printed or sent to a PC or other device using programmable print and data output formats. The FI-521's four logic level inputs and the bi-directional serial port can receive control commands from external devices. The instrument can control external devices via any of the two standard cutoff outputs. Also, has on board an analog output that is fully calibrated for 0 to 2.5 VDC.

Part Number Product Ship Weight
- kg
Ship Weight
- lbs
List Price
AWT05-506170 FI-521 Indicator US version with LED display, 115v AC 50/60 Hz, real time clock, two serial port, four inputs, two cutoff outputs, IP65 enclosure, RS-485, 7-pin load cell connector and analog output 0-2.5 VDC 3 8 $915
AWT05-506171 FI-521 Indicator EU version with LED display, 115v AC 50/60 Hz, real time clock, two serial port, four inputs, two cutoff outputs, IP65 enclosure, RS-485, 7-pin load cell connector and analog output 0-2.5 VDC 3 8 $915
AWT05-506172 FI-521 Indicator UK version with LED display, 115v AC 50/60 Hz, real time clock, two serial port, four inputs, two cutoff outputs, IP65 enclosure, RS-485, 7-pin load cell connector and analog output 0-2.5 VDC 3 8 $915


Note: Special Lengths may be available per RFQ. Maximum length is 50 feet


The Dillon RD-65 is a highly durable remote display equipped with a powder coated mild steel enclosure (IP65), wall mount swivel bracket, or easy-to-install hanging rings. For added convenience, this model even includes an adjustable sun visor.

RD-65 Features

  • Display - Double row ultra-bright large 5", 6 Digit LED Display visible up to 150'
    Displays up to 999,999 or down to -99,999
  • Annunciator - kg, lb., G (gross), N (net)
RD-65 Indicators Software
  • Highly Durable - Powder coated mild steel enclosure (IP65) with wall mount swivel bracket or easy to install hanging rings. Adjustable sun visor included.
  • Serial Port - RS-232, RS-485 or current loop with selection to five protocols, three data formats and 8 types of baud rates.

RD-65 Specifications

  • Enclosure: Powder Coated, Mild SteelNon Glare Lens
  • Display Type: 127 mm (5") 7-Segment LED Display
  • Annunciators: KG., LB., G (gross), N (net)
  • Display Characters: 999,999 to -99,999
  • Communication Interface: Serial Cable Length 10 m (32')
  • Serial Port: RS-232, RS-485 or Current Loop
  • Data Format: 8N1, 7E1 or 7O1
  • Baud Rate: 110, 300, 600, 1200, 2400, 4800, 9600 or 19200
  • Five Usable Input Protocols

Power:
  • Input: 120VAC 60Hz
  • Transformer Output: 24VAC, 2 Amp (UL, Waterproof)
  • Current Draw: <1500mA
  • Fused: 2.0 amp
  • Shipping Specifications: Weight: 20 kg (45 lb.)
  • Package Dimensions: 464 mm x 448 mm x 999 mm (39.3" x 18.3" x 17.6")
  • Warranty: One Year from Shipment
  • Product Code: 816965004638
